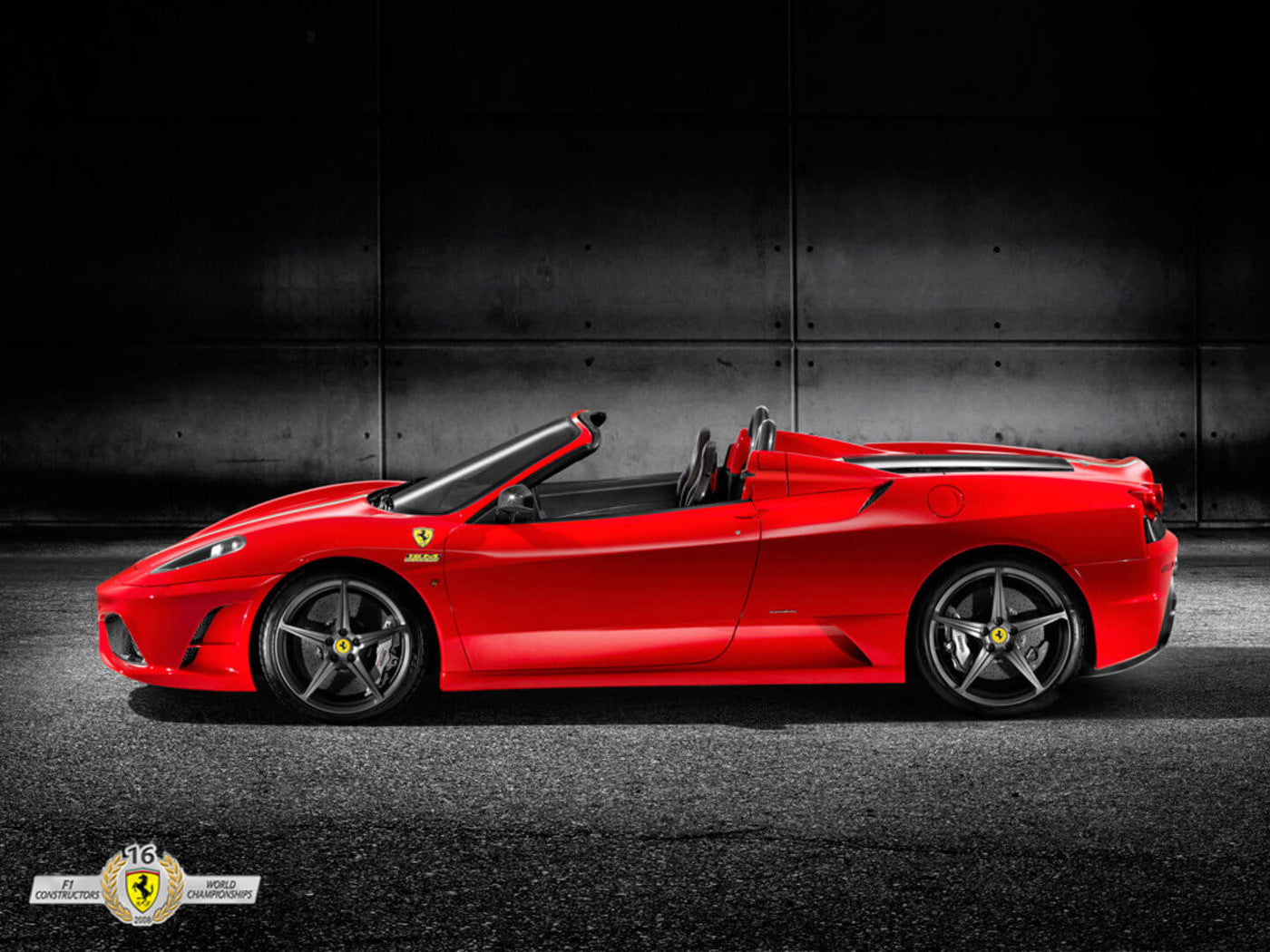

Ferrari Scuderia Spider 16M (2008–2009): Full Specs, Performance, Dimensions, and Features
Discover everything about the Ferrari Scuderia Spider 16M. Built to commemorate Ferrari’s 16th Formula 1 Constructors’ Championship, this limited-edition convertible is based on the track-focused 430 Scuderia and topped 315 km/h (196 mph) with a 0–100 km/h (0–62 mph) time of 3.7 seconds. Just 499 were officially produced, although according to online sources, at least 533 16Ms left the factory.
Overview
Assembly: Maranello, Italy
Body style: 2-door convertible (Spider)
Class: Sports car (S)
Designer: Frank Stephenson with Pininfarina
Layout: Rear mid-engine, rear-wheel drive
Manufacturer: Ferrari
Production: 2008–2009 (499 units)
Aerodynamics and Design
Body styling: Carbon-fibre diffuser and front spoiler, intake resonators, lightened bumpers; roof removed for open-top layout
Cd (drag coefficient): ~0.33
Dimensions and Weight
Dry weight: 1,340 kg (2,954 lb)
Curb weight: 1,440 kg (3,175 lb)
Length: 4,512 mm (177.6 in)
Width: 1,923 mm (75.7 in)
Height: 1,217 mm (47.9 in)
Wheelbase: 2,600 mm (102.4 in)
Front track: 1,669 mm (65.7 in)
Rear track: 1,615 mm (63.6 in)
Engine
Configuration: 4.3 L F136 ED flat‑plane V8, DOHC with 32 valves
Maximum power: 510 PS (503 hp; 375 kW) at 8,500 rpm
Torque: 470 Nm (347 lb‑ft) at 5,250 rpm
Power per litre: ~118 PS/L
Compression ratio: 11.9 : 1
Bore × stroke: 83 × 77 mm (3.26 × 3.03 in)
Transmission: 6-speed Graziano F1 automated manual (paddle-shift only)
Performance
0–100 km/h (0–62 mph): 3.7 seconds
0–60 mph: ~3.8 seconds
1/4 mile: ~11.8 s @ 122.7 mph
Top speed: 315 km/h (196 mph)
Wheels and Braking
Tires: Front 235/35 ZR19; Rear 285/35 ZR19
Brakes: Carbon-ceramic ventilated discs front and rear
Suspension: Double wishbones front and rear
Steering: Power-assisted rack-and-pinion
Related
-
Ferrari 430 Scuderia: Coupe sibling with identical performance specifications
-
Ferrari F430 Spider: Standard convertible variant from which the 16M was derived
