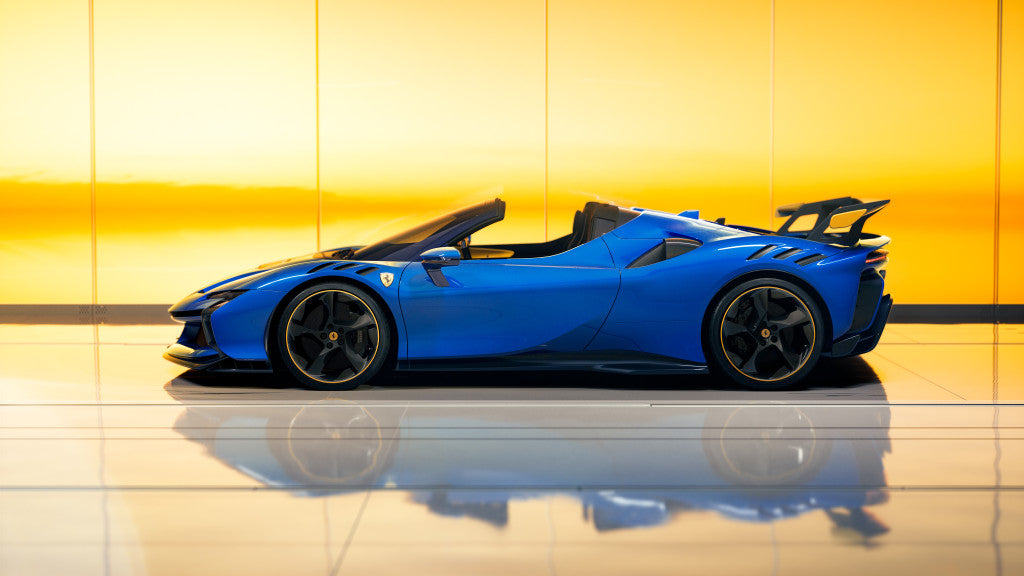

2023 Ferrari SF90 XX Spider

2023 Ferrari SF90 XX Spider

Ferrari SF90 XX Spider (2023–2025): Full Specs, Performance, Dimensions, and Features

Discover everything about the Ferrari SF90 XX Spider. Introduced in June 2023, this track-oriented convertible retains the retractable hardtop from the SF90 Spider but adds 30 PS for a total of 1,016 PS and doubles the downforce of the standard Spider.

Overview

Assembly: Maranello, Italy
Body style: 2-door retractable-hardtop Spider
Class: Supercar
Designer: Ferrari Centro Stile under Flavio Manzoni
Layout: Mid-engine, all-wheel drive plug-in hybrid
Manufacturer: Ferrari
Production: 2023–2025 (599 units)

Aerodynamics and Design

Rear wing: Fixed carbon-fibre wing tuned for high downforce
Active aero: Front splitter with vortex generators and shut-off Gurney flap on the engine cover
Downforce: Generates twice the downforce of the standard SF90 Spider

Dimensions and Weight

Length: 4,850 mm (190.9 in)
Width: 2,000 mm (78.7 in)
Height: 1,225 mm (48.2 in)
Wheelbase: 2,650 mm (104.3 in)
Dry weight: 1,660 kg (3,659 lb)
Weight distribution: 44 % front / 56 % rear

Engine and Powertrain

Engine type: 4.0 L twin-turbo V8 (F154) and three electric motors
Displacement: 3,990 cc
Bore × stroke: 88 × 82 mm
ICE power: 797 PS (585 kW; 787 hp) @ 7,900 rpm
Electric power: 233 PS (171 kW; 230 hp)
Total output: 1,016 PS (748 kW; 1,003 hp)
Torque (ICE): 804 Nm (593 lb‑ft) @ 6,250 rpm
Maximum revs: 8,300 rpm
Transmission: 8-speed F1 dual-clutch automatic with torque-vectoring all-wheel drive

Performance

0–100 km/h (0–62 mph): 2.3 s
0–200 km/h (0–124 mph): 6.7 s
Top speed: 320 km/h (199 mph)
Dry weight to power ratio: 1.67 kg/PS

Wheels and Braking

Front brakes: 408 × 38 mm carbon-ceramic discs with 6-piston calipers
Rear brakes: 360 × 32 mm carbon-ceramic discs with 4-piston calipers
Front tires: 255/35 ZR20
Rear tires: 315/30 ZR20
