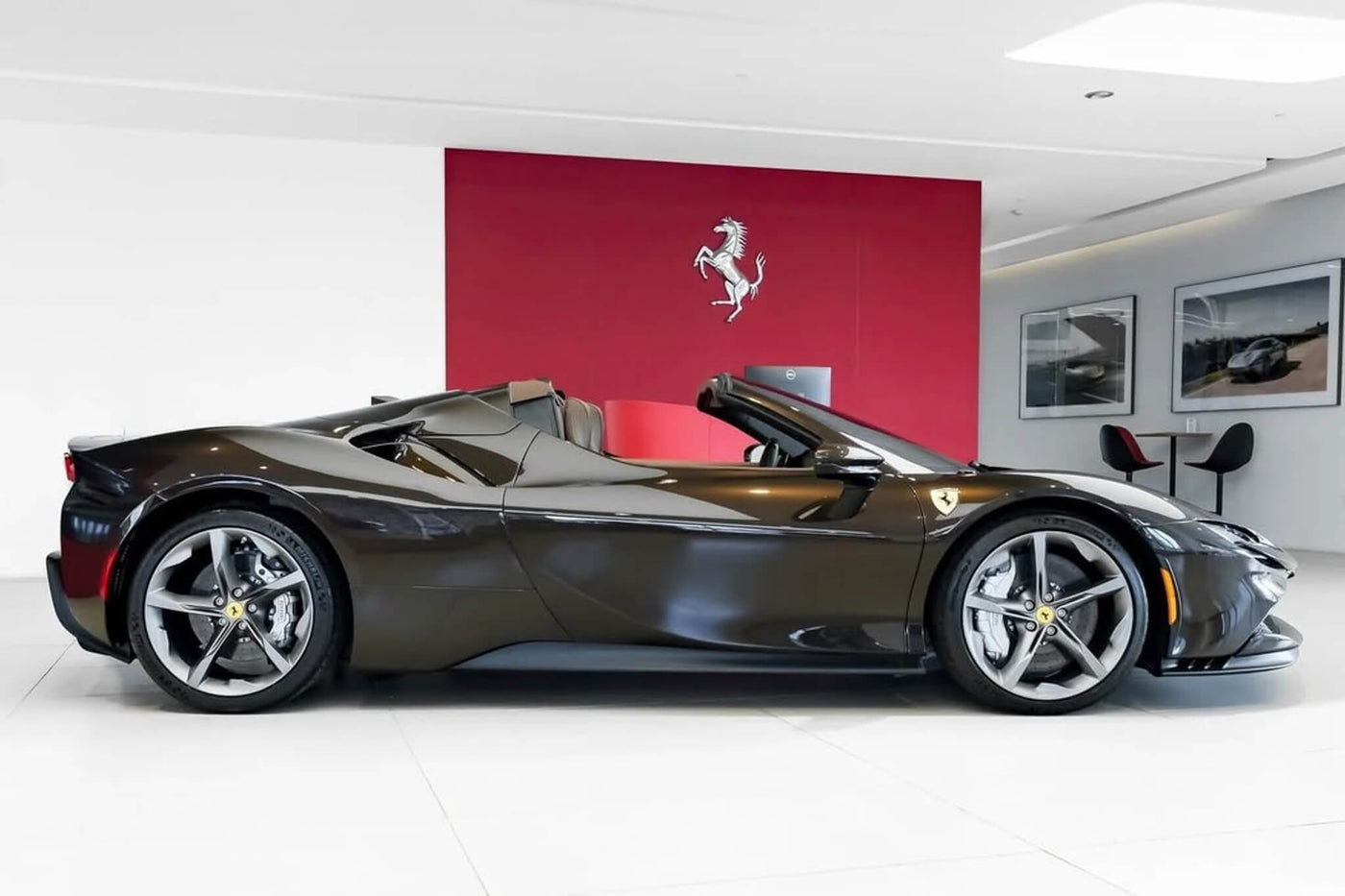

2020 Ferrari SF90 Spider

2020 Ferrari SF90 Spider

Header photo: duPont REGISTRY

Ferrari SF90 Spider (2020–2023): Full Specs, Performance, Dimensions, and Features

Discover everything about the Ferrari SF90 Spider. Launched in 2020, it offers all the performance of the SF90 Stradale in an open‑top format, combining a twin‑turbo V8 and three electric motors for 986 hp. The retractable hardtop delivers grand touring comfort along with its hybrid and famed supercar (almost hypercar) capabilities.

Overview

Assembly: Maranello, Italy
Body style: 2-door retractable-hardtop Spider
Designer: Ferrari Centro Stile under Flavio Manzoni
Layout: Mid-engine, all-wheel-drive plug-in hybrid
Manufacturer: Ferrari
Production: 2020–2023

Aerodynamics and Design

Rear wing: Active wing integrated for drag reduction and downforce
Front aero: Active flaps and vortex generators to optimise airflow
Downforce: Approximately 390 kg (860 lb) at high speed

Dimensions and Weight

Wheelbase: 2,650 mm (104.3 in)
Length: 4,704 mm (184.9 in)
Width: 1,973 mm (77.6 in)
Height: 1,191 mm (46.9 in)
Dry weight: 1,670 kg (3,681 lb)
Weight distribution: 45% front / 55% rear

Engine and Powertrain

Engine type: 4.0 L twin‑turbo V8 (F154 FA)
Displacement: 3,990 cc
ICE power: 780 PS (769 hp; 573 kW) @ 7,500 rpm
Electric motors: Three (two front, one rear)
Electric power: 220 PS (217 hp; 162 kW)
Total system output: 986 PS (735 kW; 986 hp)
Torque (combined): 800 Nm (590 lb‑ft)
Battery capacity: 7.9 kWh lithium‑ion
Transmission: 8-speed dual‑clutch F1 gearbox
Drivetrain: All‑wheel drive (with torque vectoring)
Max. electric only range: 25 km (16 miles)

Performance

0–100 km/h (0–62 mph): 2.5 s
0–200 km/h (0–124 mph): 7.0 s
Top speed: 340 km/h (211 mph)
Fiorano lap time: 1:19.500

Wheels and Braking

Front brakes: 398 × 38 mm carbon‑ceramic discs, 6‑piston calipers
Rear brakes: 360 × 32 mm carbon‑ceramic discs, 4‑piston calipers
Front tires: 255/35 ZR20
Rear tires: 315/30 ZR20
100-0 km/h: 29.5 meters

Assetto Fiorano Pack

The Assetto Fiorano package is a track-focused upgrade for both SF90 Stradale and Spider. It includes racing-derived Multimatic shock absorbers, carbon-fibre inner door panels and underbody elements, a titanium exhaust system, and optional carbon-fibre wheels. These modifications reduce weight by 30 kg (66 lb) and enhance aerodynamic precision and handling—that much closer to track performance.
